NAC-3 Autopilot Computer
PRODUCT DETAILS

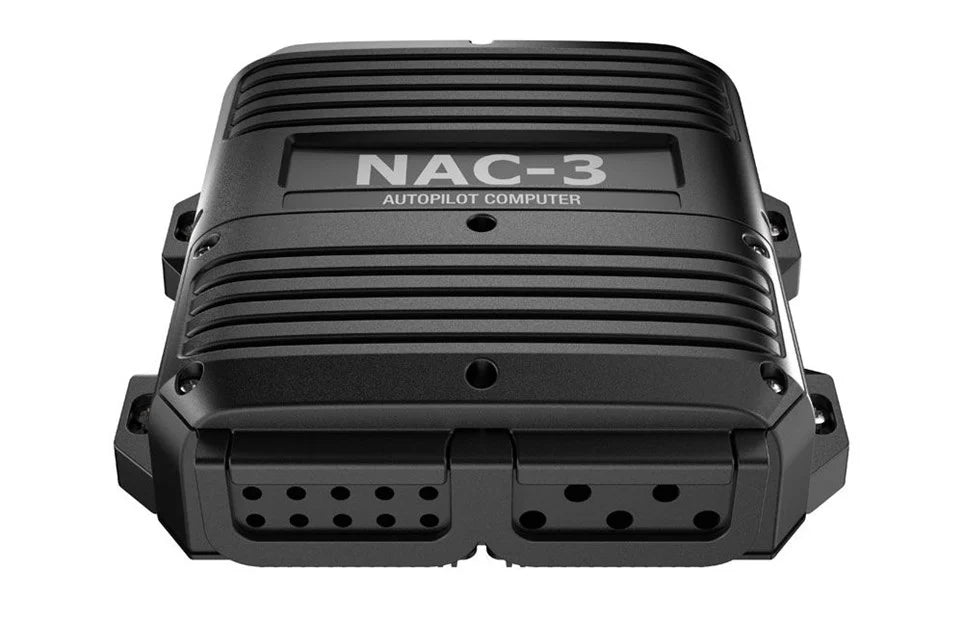

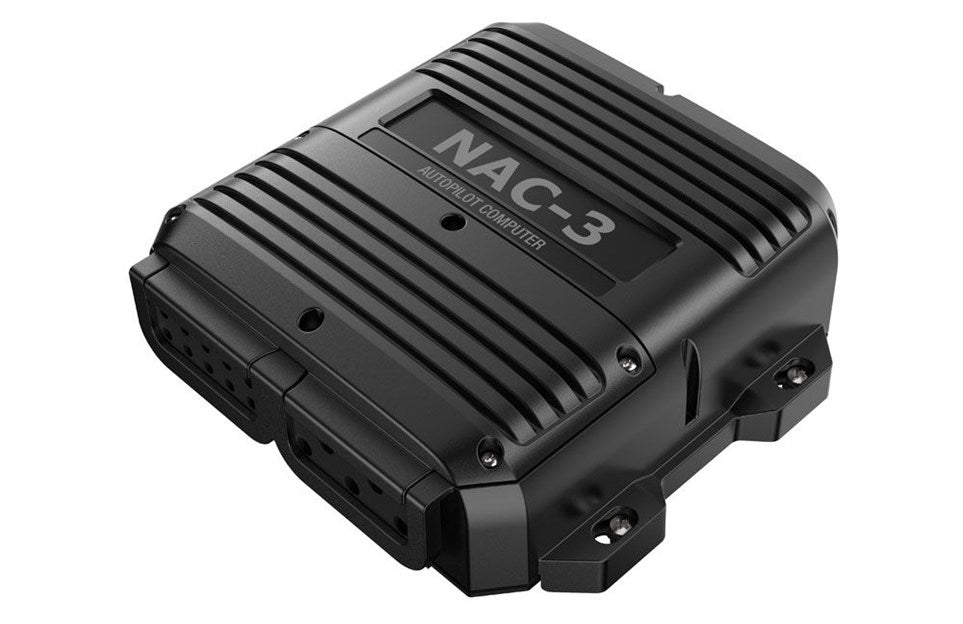

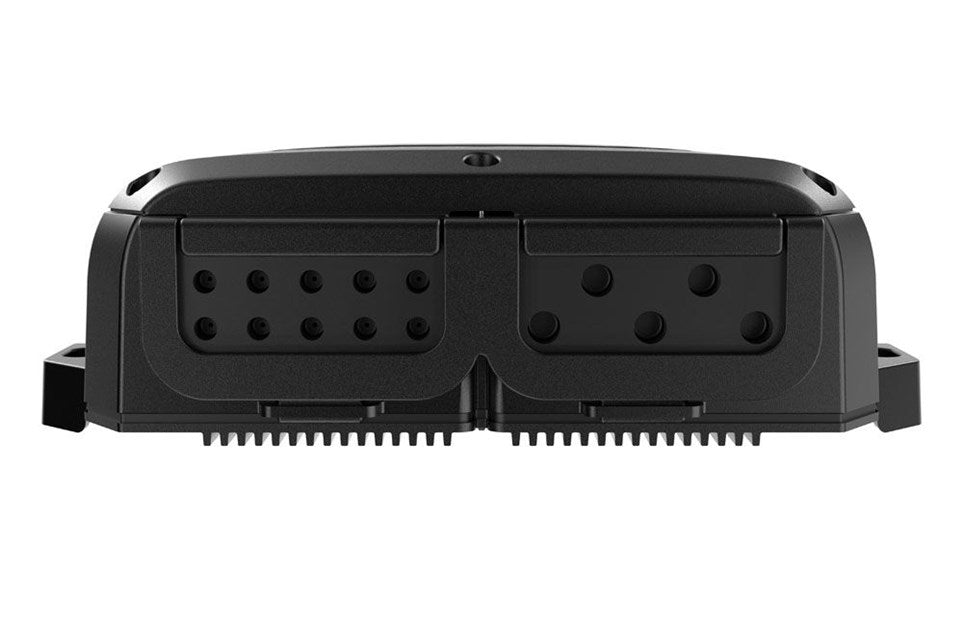

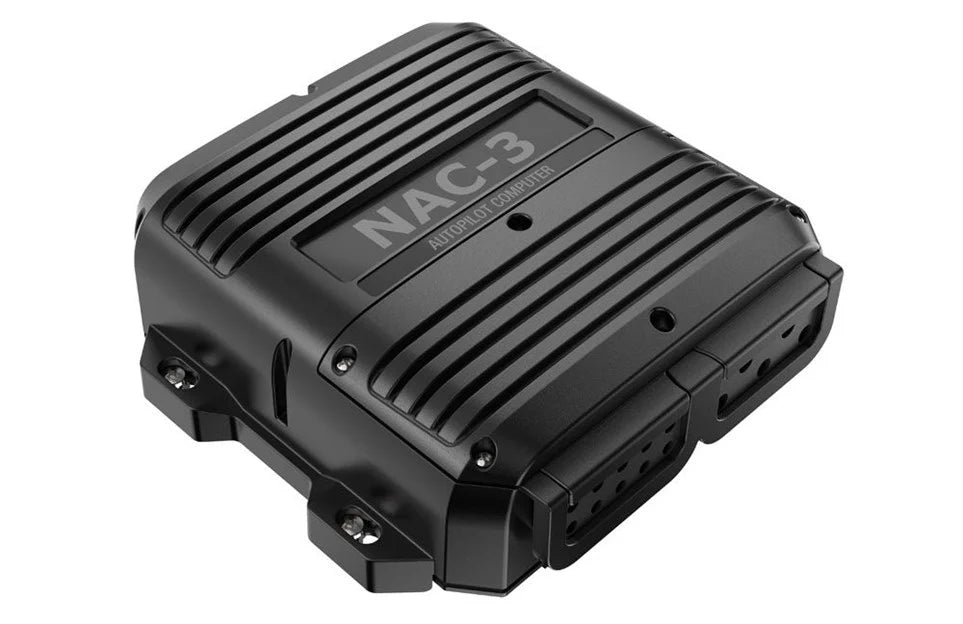

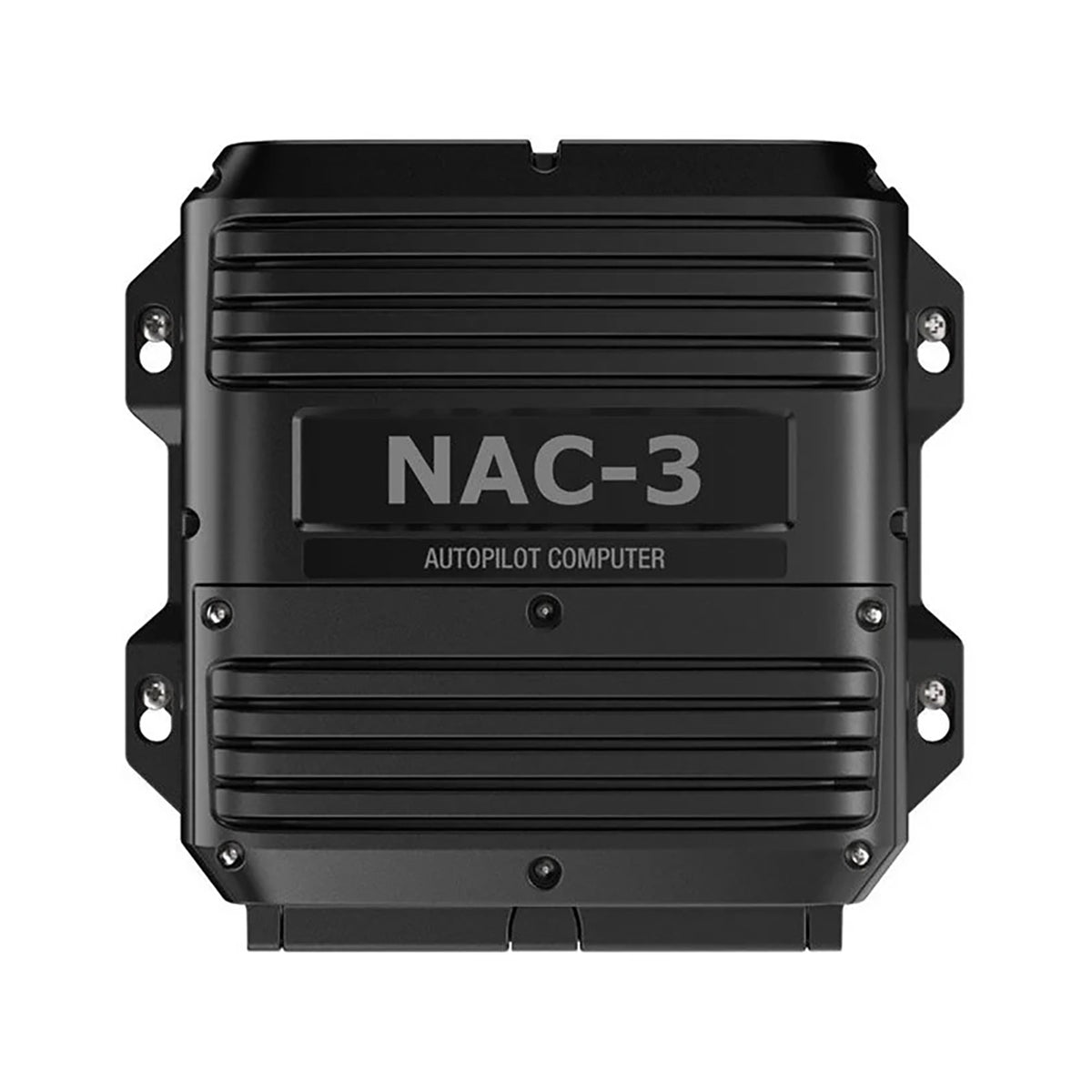

The NAC-3 Autopilot Computer is the brains behind your B&G autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats ten metres (35 feet) or greater in length and is rated to operate high-current pumps, mechanical drive units, and solenoid valves (30 amps continuous/50 amps peak).
-
Recommended for boats above 10 metres (35 feet) in length
-
High-current output of 30 amps continuous, 50 amps peak
-
Clutch output (3 amps maximum)
-
Compatible with high-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
-
Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats
-
Supports RF25 rudder feedback units
-
NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays
-
NMEA 0183® input
