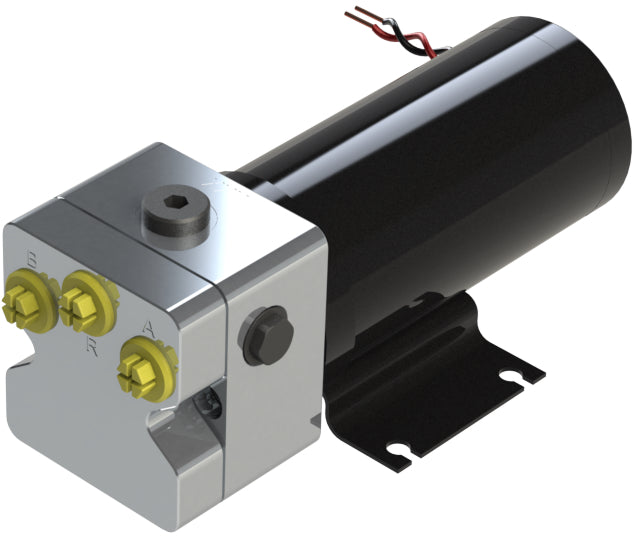

PR+ Reversing DC Hydraulic Pump
PR+ Reversing DC Hydraulic Pump

SKU : PR+06 12

PR+ Reversing DC Hydraulic Pump

Regular price $599.00 Save $-599.00


/
In stock
Estimated delivery between - .

PR+ Reversing DC Hydraulic Pump

$599.00

0.6 / 12V
  • 0.6 / 12V
  • 0.8 / 12V
  • 1.0 / 12V
  • 1.5 / 12V
  • 1.5 / 24V
  • 2.0 / 12V
  • 2.0 / 24V
  • 2.5 / 12V
  • 2.5 / 24V

Product Description

Backed by over 30 years of continuous development, the new range of reversing pumps represents the ultimate in quiet and smooth operation. Unlike noisy piston pump designs, the precision gear form delivers smooth flow in all conditions and with minimal noise. Now with IP67 motors that have a 4000 hour brush life, these latest generation power units are the best available.

Pilot check valves are fitted as standard and can be used with both balanced and unbalanced cylinders. Pumps have an advanced protective coating, designed especially for the salt laden atmosphere of the marine environment.

Typical amp-hour
5 bar at 25% duty
Max current
Intermittent 55 bar
Nominal L/min 12v 24v 12v 24v
PR+05 0.5 1.5 - 10.0
PR+06 0.6 0.9 - 9.0 -
PR+08 0.8 1.3 - 14.0 -
PR+10 1.0 2.2 1.0 19.0 9.0
PR+15 1.5 2.4 1.2 24.0 11.0
PR+20 2.0 2.5 1.3 25.0 12.0
PR+25 2.5 2.7 1.4 34.0 15.5
Ingress protection: IP67
EMC Protection: BS EN 60945:2002 (DC)
Ignition Protection: BS EN 28846:1993
EN ISO 10592: 1995 (Small Craft - Hydraulic Steering Systems)
Ambient Operating Temperature: -15 to +55 deg C
Max Pressure: 55 bar (intermittent operation)
Reservoir line: 2 bar Max
Ports: G1/4 (BSPP) Parallel
A = ram port
B = ram port
R = reservoir port
Rotation: Red lead to - positive Pressure to A port
Black lead to positive - Pressure to B port
Hoses: Suitable for working pressure 55 bar
Minimum burst pressure: 100 bar
Fluid: ISO VG10 to VG40 Hydraulic mineral fluid meeting ISO 6743-4 HV
