Hydraulic Steering Split System (T2)
SKU: HS+40 15 12
Regular price
$2,499.00 USD
00
![Coax Cable Specifications (PDF)[new]](https://cdn.shopify.com/s/files/1/0904/0039/1487/files/Coax_Table-01.png?v=1734898269){kind=link}
){kind=link}
1.5 LPM - $2,499.00
- 1.5 LPM - $2,499.00
- 2.0 LPM - $2,599.00
Hydraulic Steering Split System (T2)
PRODUCT DETAILS

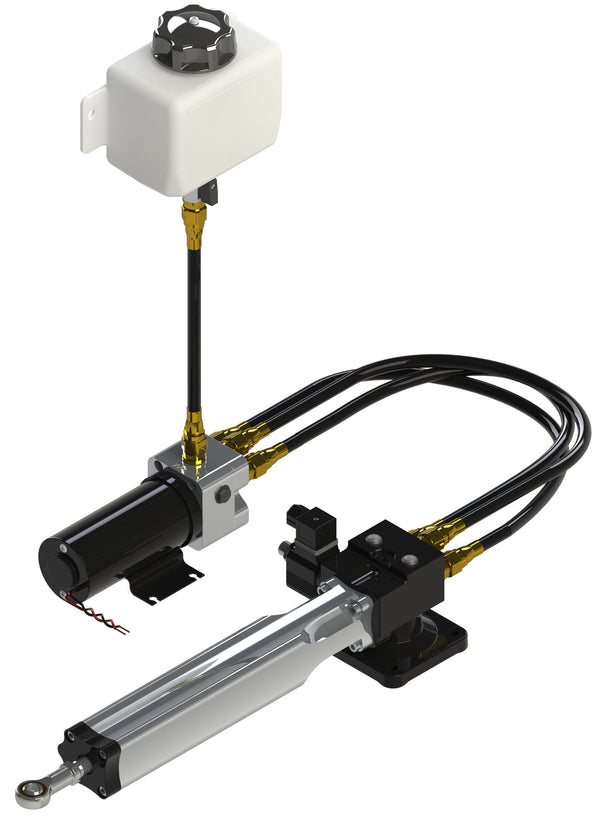

The T2 hydraulic steering split system has been designed specifically for marine secondary steering applications. It comes fitted with a reversing pump which, depending on the size of pump selected, can produce thrusts of up to 6900N. A solenoid clutch is fitted that, when disengaged, enables mechanical steering to be used. Built-in relief valves protect the installation and there is a further option of mounting a linear feedback transducer on the cylinder.
The systems consist of a compact cylinder which includes the clutch and relief valves, pump, reservoir and all hoses and fittings. They come pre-filled, bled, ready for use and are supplied complete with fasteners for mounting the cylinder and pump along with a tiller bolt.
| Current | Typical Amp-hour 580N at 25% duty |
Typical Current Intermittent 6350N |
H.O time seconds (no load) |
||
| 12v | 24v | 12v | 24v | ||
| HS+4010 | 2.0 | 1.0 | 19.0 | 9.0 | 13 |
| HS+4020 | 2.5 | 1.3 | 25.0 | 12.0 | 9 |
| Ingress protection: | IP67 |
| EMC Protection S EN 60945: | 2002 (DC) |
| Ignition Protection BS EN 28846: | 1993 |
| EN ISO 10592: | 1995 (Small Craft - Hydraulic Steering Systems) |
| Ambient Operating Temperature: | -15 to +55 deg C |
| Max Operating Thrust: | 6900N (Intermittent) |
| Relief Valve setting: | 62 bar (7800N) |
| Orientation: | Red lead to positive - Extends Black lead to positive - Retracts |
| Clutch coil: | 12 watt |
| Clutch connection: | DIN 43650 (6-8 mm cable) |
| Fluid: | ISO VG10 to VG40 hydraulic mineral fluid to ISO 6743-4 HV |
| Weight: | 11 kg |
