Hydraulic Steering Split System (T3)
$3,299.00
- 12V
- 24V
Product Description
The T3 hydraulic steering split system is designed specifically for marine secondary steering applications. They come fitted with 2.5 liter per minute reversing pumps giving thrusts of up to 10840N. A solenoid clutch is fitted that, when disengaged, enables mechanical steering to be used. Built-in relief valves protect the installation and there is a further option for mounting a linear feedback transducer on the cylinder.

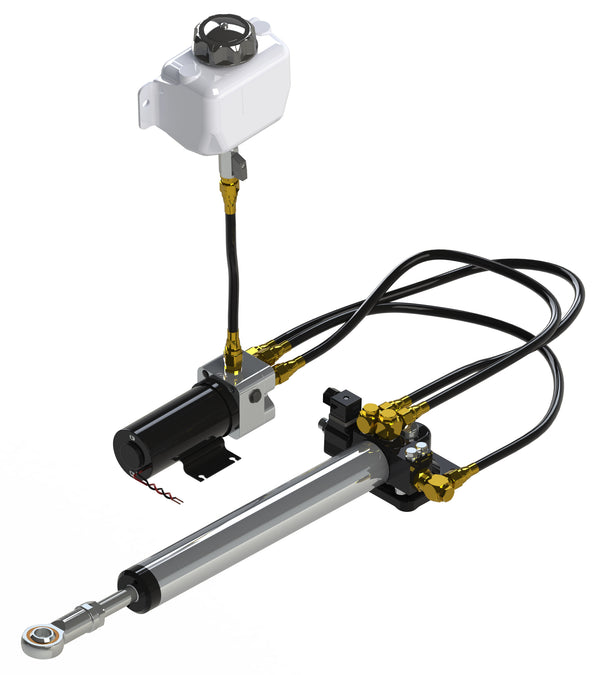

Systems consist of a compact cylinder which includes the clutch and relief valves, pump, reservoir and all hoses and fittings. They come pre-filled and bled ready for use and are supplied complete with fasteners for mounting the cylinder and pump, and a tiller bolt.
| Current | Typical Amp-hour 910N at 25% duty |
Typical Current Intermittent 9970N |
||
| 12v | 24v | 12v | 24v | |
| HS50 S | 2.7 | 1.4 | 34.0 | 15.5 |
| HS50 SA | 2.7 | 1.4 | 34.0 | 15.5 |
|
Ingress protection: |
IP67 |
|
EMC Protection S EN 60945: |
2002 (DC) |
|
Ignition Protection BS EN 28846: |
1993 |
|
EN ISO 10592: |
1995 (Small Craft - Hydraulic Steering Systems) |
|
Ambient Operating Temperature: |
-15 to +55 deg C |
|
Max Operating Thrust: |
10840N (Intermittent) |
|
Relief Valve setting: |
62 bar (12400N) |
|
Orientation: |
Red lead to positive - Extends Black lead to positive - Retracts |
|
Clutch coil: |
12 watt |
|
Clutch connection: |
DIN 43650 (6-8 mm cable) |
|
Fluid: |
ISO VG10 to VG40 hydraulic mineral fluid to ISO 6743-4 HV |
|
Weight: |
14 kg |
