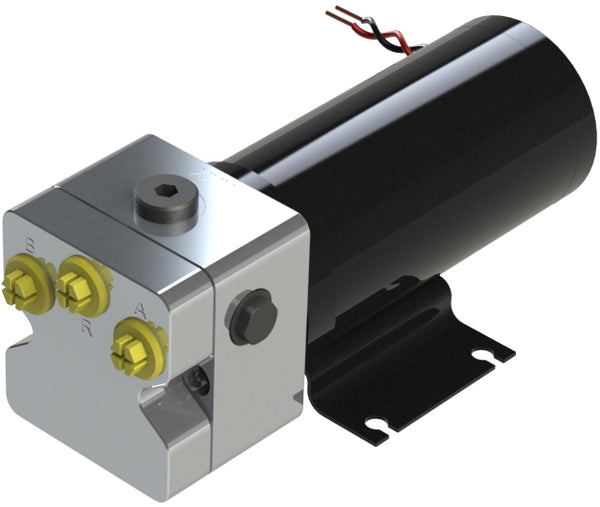

PR+ Reversing DC Hydraulic Pump
SKU: PR+06 12
Regular price
$599.00 USD
000000000
![Coax Cable Specifications (PDF)[new]](https://cdn.shopify.com/s/files/1/0904/0039/1487/files/Coax_Table-01.png?v=1734898269){kind=link}
0.6 / 12V - $599.00
- 0.6 / 12V - $599.00
- 0.8 / 12V - $599.00
- 1.0 / 12V - $699.00
- 1.5 / 12V - $799.00
- 1.5 / 24V - $799.00
- 2.0 / 12V - $899.00
- 2.0 / 24V - $899.00
- 2.5 / 12V - $1,199.00
- 2.5 / 24V - $1,199.00
PR+ Reversing DC Hydraulic Pump
PRODUCT DETAILS
Backed by over 30 years of continuous development, the new range of reversing pumps represents the ultimate in quiet and smooth operation. Unlike noisy piston pump designs, the precision gear form delivers smooth flow in all conditions and with minimal noise. Now with IP67 motors that have a 4000 hour brush life, these latest generation power units are the best available.
Pilot check valves are fitted as standard and can be used with both balanced and unbalanced cylinders. Pumps have an advanced protective coating, designed especially for the salt laden atmosphere of the marine environment.
| Typical amp-hour 5 bar at 25% duty |
Max current Intermittent 55 bar |
||||
| Nominal L/min | 12v | 24v | 12v | 24v | |
| PR+05 | 0.5 | 1.5 | - | 10.0 | |
| PR+06 | 0.6 | 0.9 | - | 9.0 | - |
| PR+08 | 0.8 | 1.3 | - | 14.0 | - |
| PR+10 | 1.0 | 2.2 | 1.0 | 19.0 | 9.0 |
| PR+15 | 1.5 | 2.4 | 1.2 | 24.0 | 11.0 |
| PR+20 | 2.0 | 2.5 | 1.3 | 25.0 | 12.0 |
| PR+25 | 2.5 | 2.7 | 1.4 | 34.0 | 15.5 |
| Ingress protection: | IP67 |
| EMC Protection: | BS EN 60945:2002 (DC) |
| Ignition Protection: | BS EN 28846:1993 |
| EN ISO 10592: | 1995 (Small Craft - Hydraulic Steering Systems) |
| Ambient Operating Temperature: | -15 to +55 deg C |
| Max Pressure: | 55 bar (intermittent operation) |
| Reservoir line: | 2 bar Max |
| Ports: | G1/4 (BSPP) Parallel A = ram port B = ram port R = reservoir port |
| Rotation: | Red lead to - positive Pressure to A port Black lead to positive - Pressure to B port |
| Hoses: | Suitable for working pressure 55 bar |
| Minimum burst pressure: | 100 bar |
| Fluid: | ISO VG10 to VG40 Hydraulic mineral fluid meeting ISO 6743-4 HV |
